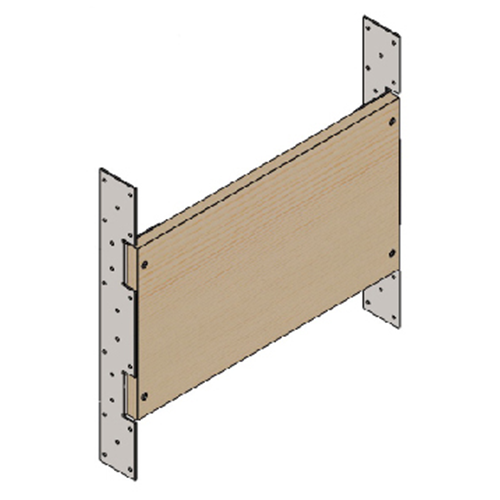

universal board in wood H30 centre to centre distance 60

TABLE PLYWOOD H = MM.300 MM.600 POSTS FOR DISTANCE COMPONENT PRE INSTALLATION OF GENERAL CARGO MAX 150KG. It EQUIPPED WITH: - FIXING FLANGE SIDE SLIDING - TABLE PLYWOOD S = MM. 20 CM. X 30 CM. 53. TO INSTALL ON POSTS-CASE, BY MM. 50-75-100, USING BOLTS SPECIFIC FOR METAL. FLANGES ALLOW ONE SIDE CORRECTION wheelbase POSTS UP TO +/- CM. 2. PLYWOOD POPLAR PRODUCT UNI EN 313-2: 2000 and CE MARKED FOR USE AS A COMPONENT STRUCTURES IN ACCORDANCE WITH UNI EN 13986: 2005. GALVANIZED STEEL DX51D + Z 275 WITH EN 10346: 2009 ZINC BOLTS ACCORDING TO UNI EN ISO 898-1: 2012 (BOLTS AND THREAD BARS) AND 898-2: 2012 (HEX NUTS). TYPE: GOMAN ARTICLE STF11 / 01
