Taps

SPECIFICATIONS

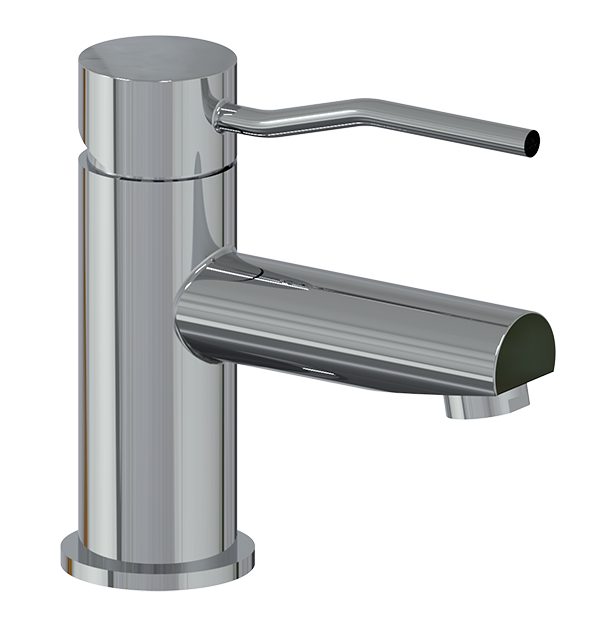

SINGLE LEVER WASHBASIN MIXER IN CHROME BRASS WITH LEVER LONG CM.15.5, WITH WATER SPOUT 113MM FROM THE CENTER HOLE, WITH RED AND BLUE MARK FOR INDICATION OF WATER TEMPERATURE. AERATOR AND F3/8"G STAINLESS STEEL FLEXIBLE INLET HOSES. CARTRIDGE WITH CERAMIC DISKS. COMPLETE WITH CLICK-CLACK WASTE. FIXING MATERIAL AND GASKET INCLUDED. DIMENSIONS MM.155X55X145 (H). TYPE GOMAN CODE D0165/99

SPECIFICATIONS

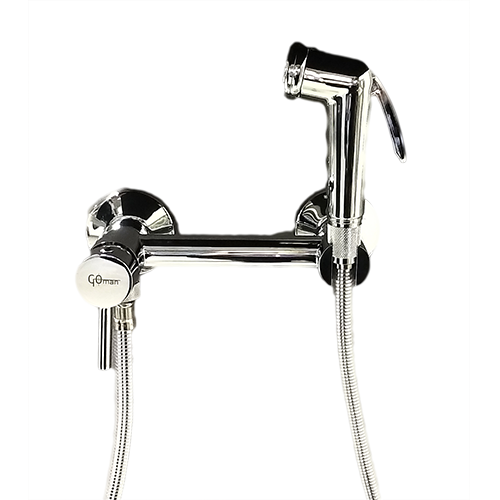

MIXER IN BRASS COMPLETE WITH SHOWER BUTTON SHUT-OFF IN ABS CHROME. INPUT WATER 3/4 "F. ECCENTRIC 3/4" x 1/2 ". OUTPUT MIXED WATER 1/2" M. FLEXIBLE MM.1500 TYPE: GOMAN ARTICLE D0315B / 99

SPECIFICATIONS

THERMOSTATIC CHROME SHOWER, WC and BIDET WITH CLINICAL LEVER. GRADUATED KNOB EQUIPPED FOR THE TEMPERATURE CONTROL WITH LOCK SAFETY 38th INTERRUPTION AND TOTAL DISPENSING WATER IN CASE OF LACK OF COLD WATER IN ACCORDANCE WITH THE STANDARD EN1111. Mount WALL FROM F3 / 4 "PITCH 150 MM COMPLETE WITH ECCENTRIC WALL ½" X3 / 4 "AND VALVES. TYPE: GOMAN ARTICLE D0160 / 99

SPECIFICATIONS

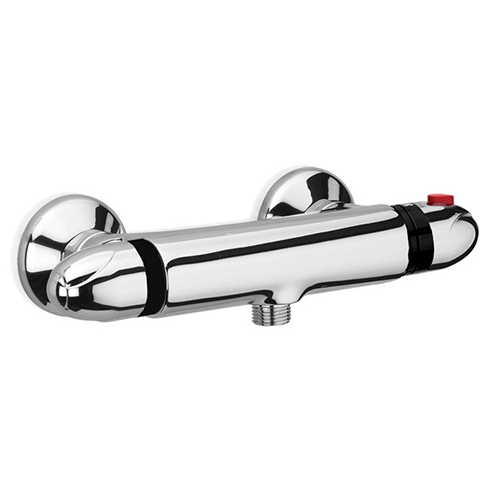

EXTERNAL CHROME THERMOSTATIC MIXER FOR SHOWER, WC AND BIDET. EQUIPPED WITH GRADUATED KNOB FOR TEMPERATURE REGULATION WITH SAFETY LOCK AT 38 °C AND TOTAL INTERRUPTION OF WATER SUPPLY IN CASE OF LACK OF COLD WATER, IN COMPLIANCE WITH THE EN1111 STANDARD. F3/4" WALL FITTINGS, 150 MM CENTER DISTANCE COMPLETE WITH ½" X3/4" WALL ECCENTRICS AND NON-RETURN VALVES. TYPE GOMAN CODE D0160/99

SPECIFICATIONS

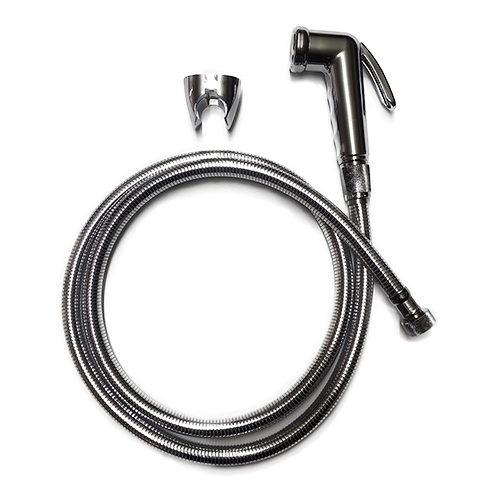

KIT OF: SHOWER IN ABS WITH CHROME BUTTON AUTOMATIC CLOSING OR LOCATION OF CONTINUOUS SUPPLY (1/2 "M), REINFORCED FLEXIBLE PVC CM. 150 CONNECTIONS 1/2" F TAPER X 1/2 "FE SUPPORT WALL ABS CHROME. TYPE: CODE GOMAN D0150 / 99

SPECIFICATIONS

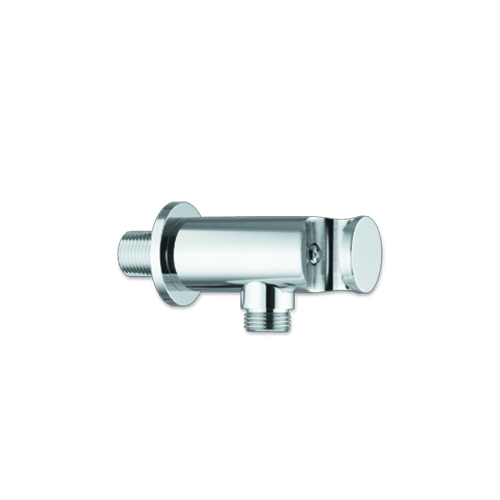

SUPPORT 1/2 "X1 / 2" BRASS CHROME WITH POWER AND WATER SAFETY VALVE IN REGGIDOCCIA. SIZE MM. 94X34X45. TYPE: GOMAN ARTICLE D0710 / 99

SPECIFICATIONS

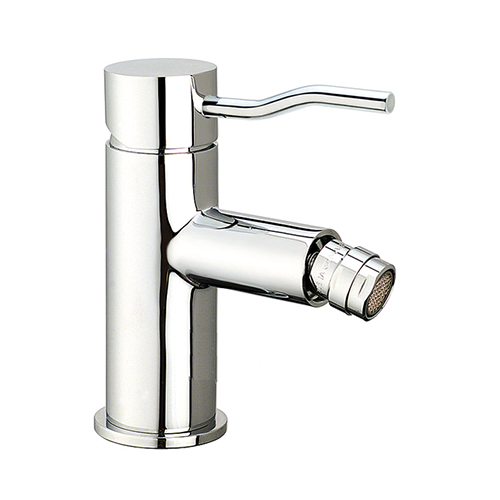

CHROME-PLATED SINGLE LEVER BIDET MIXER WITH SWIVEL AERATOR AND FLEX INOX FOR 3/8"G INLET COMPLETE WITH CLICK-CLACK WASTE AND FIXINGS. DIMENSION MM.130X150X55. TYPE GOMAN ARTICLE D0166/99

SPECIFICATIONS

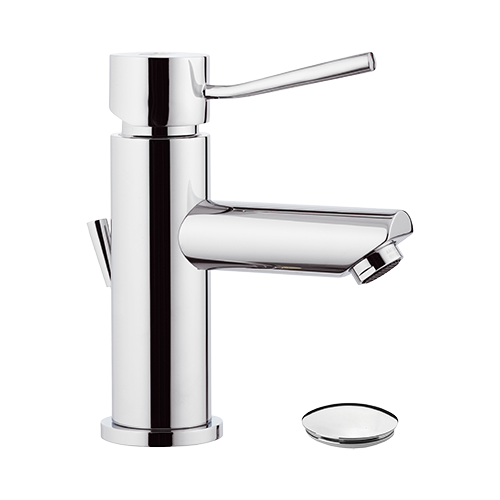

BASIN MIXER WITH MOUTH OF DELIVERY FROM MM 110. WITH A MARK IN RED AND BLUE FOR INDICATION OF TEMPERATURE. MADE IN BRASS. LEVER CERAMIC DISC CARTRIDGE. WATER INLET CONNECTIONS WITH FLEXIBLE STAINLESS STEEL 3/8 "GAS FEMALE. FASTENING MATERIAL, WITH EXHAUST SALTARELLO AND SEAL INCLUDED. DIMENSIONS MM 56 (L) X 138.5 (P) X 175 (H) OVERALL TOTAL LEVER TYPE MM 125 : GOMAN ARTICLE D0N10 / 99

SPECIFICATIONS

BASIN MIXER IN BRASS WITH CLINICAL LEVER. COMPLETE WASTE OF WASTE 1 "1/4. CARTRIDGE CERAMIC DISC. CONNECTIONS WATER INLET WITH FLEXIBLE STAINLESS STEEL 3/8" BSP FEMALE. MATERIAL FIXING AND PACKING INCLUDED. TYPE: GOMAN ARTICLE D0K14 / 99

SPECIFICATIONS

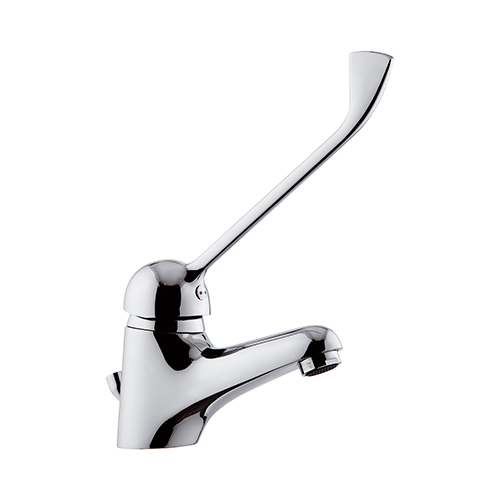

BASIN MIXER IN BRASS WITH CLINICAL LEVER WITH A SPECIAL AERATOR ANTI-LIMESTONE JET-NO AIR TO PREVENT THE SPREAD OF Legionella. COMPLETE WASTE OF WASTE 1 "1/4. CARTRIDGE CERAMIC DISC. CONNECTIONS WATER INLET WITH FLEXIBLE STAINLESS STEEL 3/8" BSP FEMALE. MATERIAL FIXING AND PACKING INCLUDED. TYPE: GOMAN ARTICLE D0K14A / 99

SPECIFICATIONS

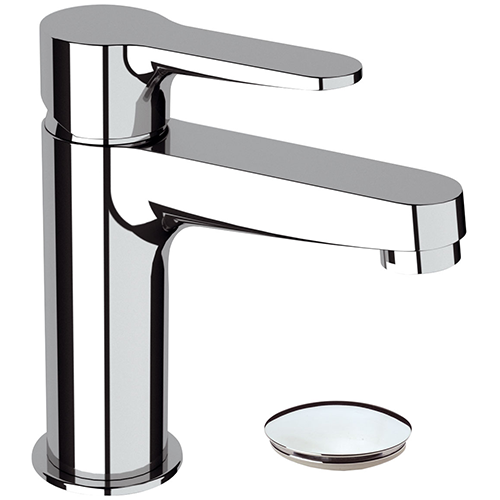

MIXER SINK WITH MOUTH OF DELIVERY FROM MM 107 (P) X 95 (H). WITH MARKED IN RED AND BLUE FOR INDICATION OF TEMPERATURE. MADE IN BRASS. LEVER CERAMIC DISC CARTRIDGE. WATER INLET CONNECTIONS WITH FLEXIBLE STAINLESS STEEL 3/8 "G FEMALE. FASTENING MATERIAL, WITH EXHAUST SALTARELLO AND SEAL INCLUDED. DIMENSIONS MM 50 (L) X 140 (P) X 150 (H) TYPE: GOMAN ARTICLE D0W10 / 99

SPECIFICATIONS

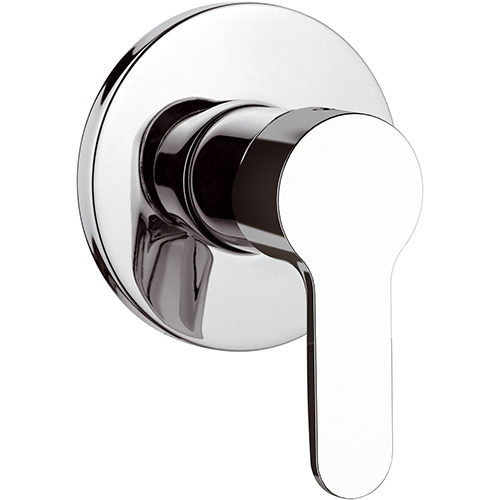

BUILT-IN SHOWER MIXER, WITH A MARK IN RED AND BLUE FOR INDICATION OF TEMPERATURE. MADE IN BRASS WITH INPUT AND WATER DELIVERY 1/2. "CARTRIDGE LEVER CERAMIC DISC. COMPLETE SET WITH FINISH PLATE Ø116 MM. TYPE: GOMAN ARTICLE D0W30 / 99

SPECIFICATIONS

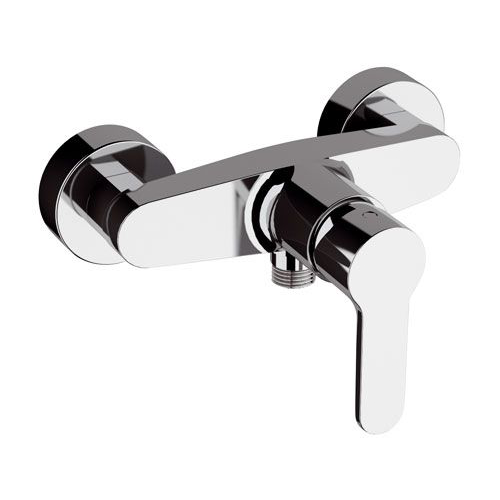

MIXER WITH SHOWER EXTERNAL LEVER VERTICAL LIMIT OVERALL, MARK IN RED AND BLUE FOR INDICATION OF TEMPERATURE. MADE IN BRASS WITH LEVER CERAMIC DISC CARTRIDGE. WALL MOUNTING. WATER INLET CONNECTIONS WITH ECCENTRIC ½ "G MALE. INTERAXIS 150 ± 5 MM. OUTPUT FROM ½" G FOR CONNECTING FLEXIBLE AND SHOWER. MATERIAL FIXING AND PACKING INCLUDED. DIMENSIONS MM 213 (L) X 150 (P) X 140 (H). TYPE: GOMAN ARTICLE D0W33 / 99

SPECIFICATIONS

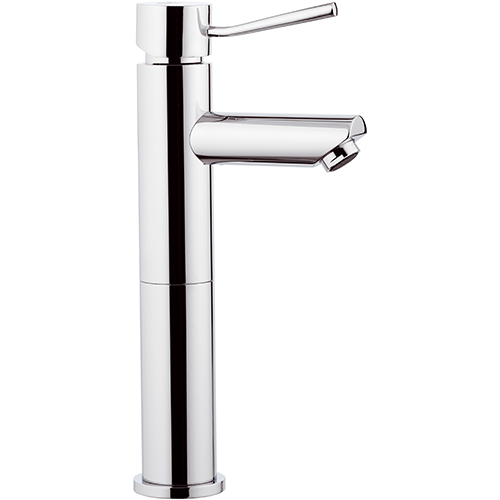

HIGH SINGLE LEVER BASIN MIXER ON COLUMN WITH 110 MM SPOUT. WITHOUT WASTE. EQUIPPED WITH RED AND BLUE MARK FOR INDICATION OF WATER TEMPERATURE. MADE OF CHROMED BRASS. SINGLE LEVER CARTRIDGE WITH CERAMIC DISKS. WATER INLET CONNECTIONS WITH 3/8 "G FEMALE STAINLESS STEEL HOSES. FIXING MATERIAL AND GASKET INCLUDED. DIMENSIONS MM 295X145X56. TOTAL DIMENSIONS OF LEVER MM 125 TYPE: GOMAN ARTICLE D0N11L/99

SPECIFICATIONS

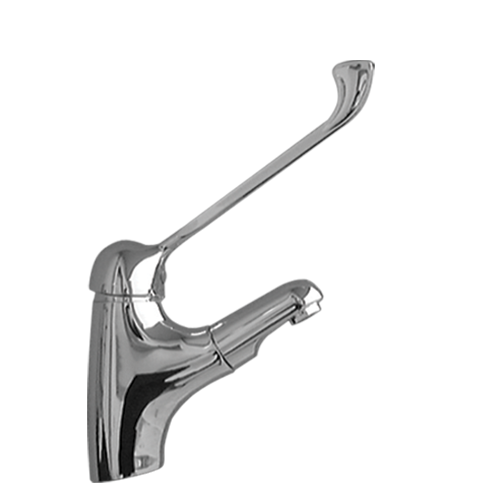

MIXER FOR SINK IN BRASS WITH FLEXIBLE CONNECTION IN STAINLESS STEEL F 3/8 "G, LONG LEVER CHROME CONFORMING TO RULES FOR THE DISABLED 'AND MOUTH PULL IN ABS WITH FLEXIBLE BRAID IN NYLON LENGTH 120cm WITH CONNECTIONS F1 / 2 "M15x1 CONE AND COMPLETE COUNTER IN LEAD. SUPPLIED COMPLETE WASTE WASTE 1 "1/4". TYPE: GOMAN ARTICLE D0K47 / 99.

SPECIFICATIONS

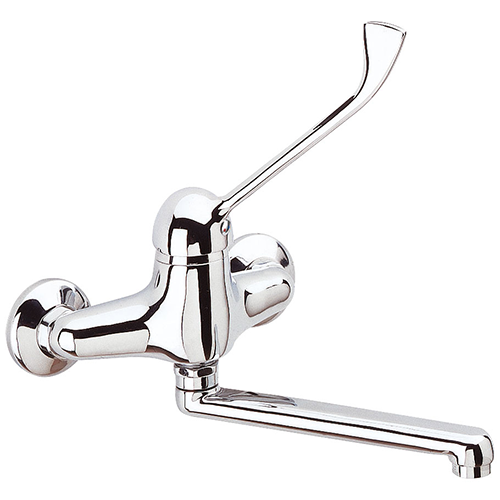

MIXER WALL WITH CLINICAL LEVER AND MOUTH OF REVOLVING 200 MM, WITH A MARK IN RED AND BLUE FOR INDICATION OF TEMPERATURE. MADE IN BRASS WITH HOT WATER 1/2 "M. LEVER CERAMIC DISC CARTRIDGE. CONNECTIONS WATER INLET CONNECTIONS WITH 2 3/4" F. DISTANCE TO MM 150. COMPLETE WITH ECCENTRIC, CEILING, AND PACKING INCLUDED. OVERALL DIMENSIONS: MM 130 (W) X 250 (P) X 260 (H). TYPE: GOMAN ARTICLE D0K45 / 99

SPECIFICATIONS

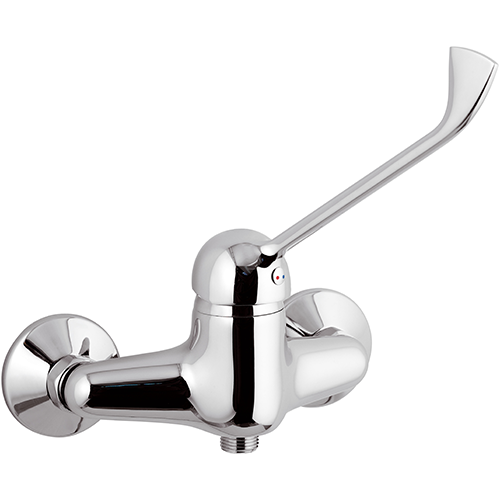

MIXER SHOWER EXTERNAL WITH CLINICAL LEVER, WITH A MARK IN RED AND BLUE FOR INDICATION OF TEMPERATURE. MADE IN BRASS WITH HOT WATER FROM 1/2 "M. LEVER CERAMIC DISC CARTRIDGE. CONNECTIONS WATER INLET FITTING WITH 2 3/4" F. DISTANCE TO 150 MM. THE ECCENTRIC COMPLETE, CEILING, AND PACKING INCLUDED. OVERALL DIMENSIONS: MM 220 (W) X 220 (P) X 200 (H). TYPE: GOMAN ARTICLE D0K31LL / 99

SPECIFICATIONS

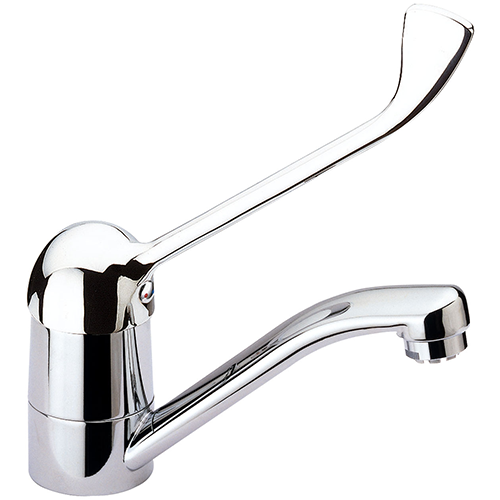

SINK TAP MIXER WITH LEVER CLINICAL AND MOUTH FROM LONG SWIVEL MM.150 (P) X 80 (H). WITH MARKED IN RED AND BLUE FOR INDICATION OF TEMPERATURE. MADE IN BRASS. CERAMIC DISC CARTRIDGE. CONNECTIONS WATER INLET WITH FLEXIBLE STAINLESS STEEL 3/8 "BSP FEMALE. MATERIAL FIXING AND PACKING INCLUDED. OVERALL DIMENSIONS OF MAXIMUM CM.18X5 (P) X 20 (H) TYPE: GOMAN ARTICLE D0K11GLL / 99

SPECIFICATIONS

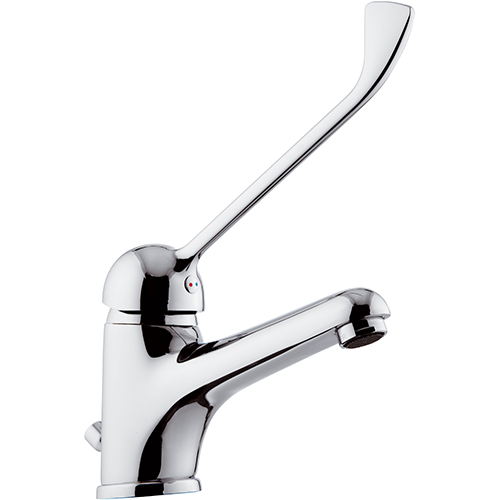

BASIN MIXER WITH CLINICAL LEVER, WITH A MARK IN RED AND BLUE FOR INDICATION OF TEMPERATURE. MADE IN BRASS WITH MOUTH OF PROLONGED DELIVERY OF WATER MM 140 HOLE AT THE CENTER. LEVER CERAMIC DISC CARTRIDGE. CONNECTIONS WATER INLET WITH FLEXIBLE STAINLESS STEEL 3/8 "BSP FEMALE. MATERIAL FIXING AND PACKING INCLUDED. OVERALL DIMENSIONS: 50 MM (L) X 175 (D) x 220 (H) X TYPE: GOMAN ARTICLE D0K14L / 99

SPECIFICATIONS

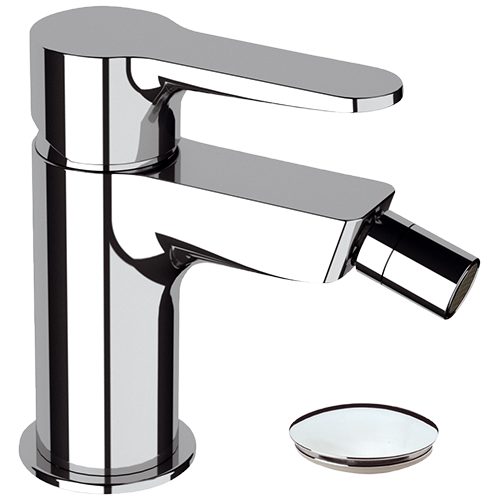

SINGLE LEVER BIDET, SNORKEL WITH ADJUSTABLE, MADE OF BRASS. LEVER CERAMIC DISC CARTRIDGE. WATER INLET CONNECTIONS WITH FLEXIBLE STAINLESS STEEL 3/8 "G FEMALE. FASTENING MATERIAL, WITH EXHAUST SALTARELLO AND SEAL INCLUDED. DIMENSIONS MM 50 (L) X 130 (P) X 125 (H) TYPE: GOMAN ARTICLE D0W20 / 99

SPECIFICATIONS

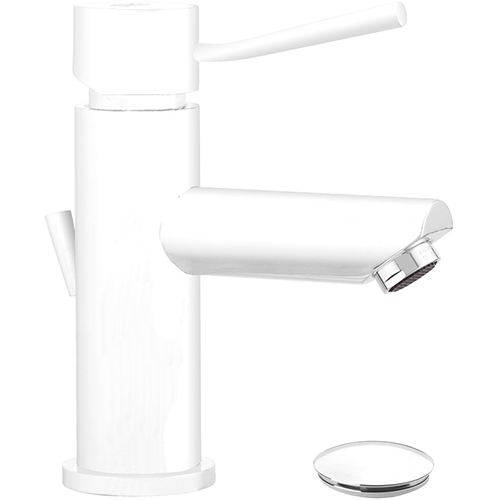

SINGLE LEVER BASIN MIXER WITH 110 MM SPOUT. EQUIPPED WITH RED AND BLUE MARK FOR WATER TEMPERATURE INDICATION. MADE OF BRASS WITH MATT WHITE COATING. SINGLE LEVER CARTRIDGE WITH CERAMIC DISKS. WATER INLET CONNECTIONS WITH 3/8"G FEMALE STAINLESS STEEL HOSES. FIXING MATERIAL, POP-UP WASTE AND GASKET INCLUDED. DIMENSIONS MM 56 (L) X 145 (W) X 171,5 (H). TYPE GOMAN CODE D0N10/30

SPECIFICATIONS

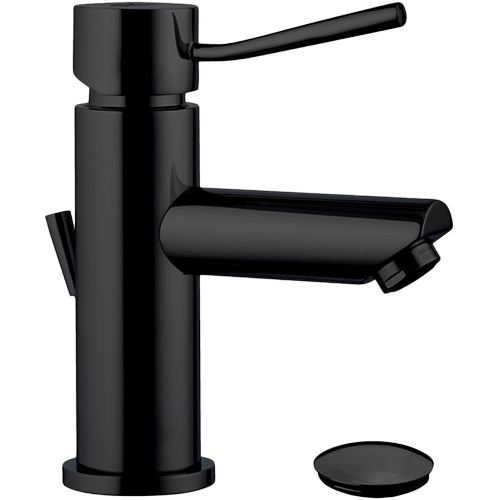

SINGLE LEVER BASIN MIXER WITH 110 MM SPOUT. EQUIPPED WITH RED AND BLUE MARK FOR WATER TEMPERATURE INDICATION. MADE OF BRASS WITH MATT BLACK COATING. SINGLE LEVER CARTRIDGE WITH CERAMIC DISKS. WATER INLET CONNECTIONS WITH 3/8"G FEMALE STAINLESS STEEL HOSES. FIXING MATERIAL, POP-UP WASTE AND GASKET INCLUDED. DIMENSIONS MM 56 (L) X 145 (W) X 171,5 (H). TYPE GOMAN CODE D0N10/31

SPECIFICATIONS

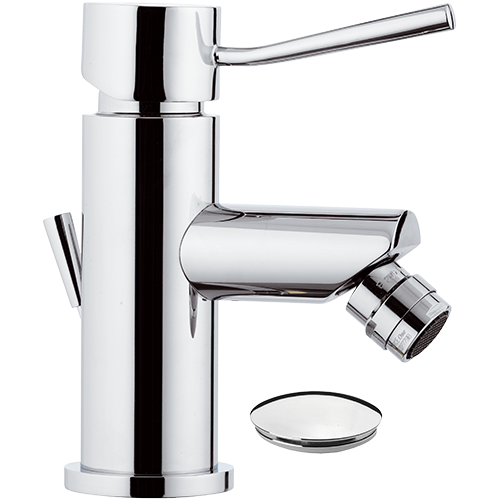

MIXER CHROME BIDET AERATOR WITH ADJUSTABLE C / SALTARELLO WASTE IN BRASS. SIZE 175X125X56 MM. TYPE: GOMAN ARTICLE D0N20 / 99

SPECIFICATIONS

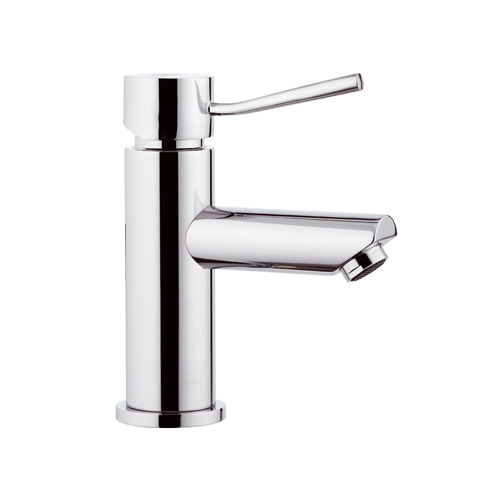

BASIN MIXER WITH MOUTH OF DELIVERY FROM MM 110. WITH A MARK IN RED AND BLUE FOR INDICATION OF TEMPERATURE. MADE IN BRASS. LEVER CERAMIC DISC CARTRIDGE. WATER INLET CONNECTIONS WITH FLEXIBLE STAINLESS STEEL 3/8 "GAS FEMALE. FIXING AND SEAL MATERIAL INCLUDED. DIMENSIONS MM 56 (L) X 138.5 (P) X 175 (H) OVERALL TOTAL MM 125 LEVER TYPE: GOMAN ARTICLE D0N11 / 99

SPECIFICATIONS

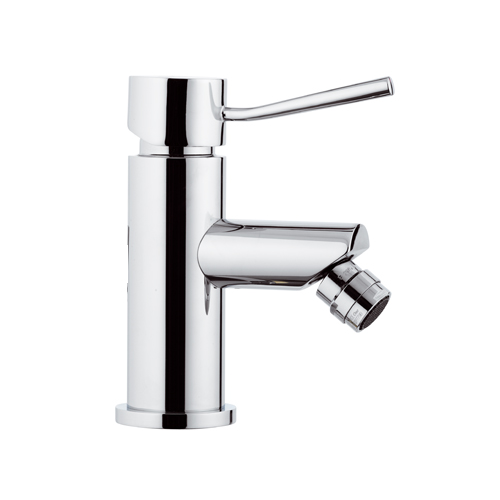

MIXER CHROME BIDET AERATOR WITH ADJUSTABLE FULL FLEX INOX DA G3 / 8. "WITHOUT EXHAUST. TYPE: GOMAN ARTICLE D0N21 / 99

SPECIFICATIONS

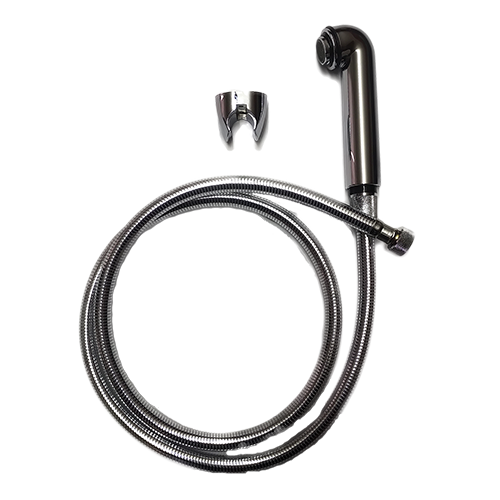

KIT COMPOSED OF: SHOWER WITH AERATOR, IN SHOCKPROOF CHROME ABS, M1/2"G CONNECTION, CHROME REINFORCED PVC FLEXIBLE 150 CM. F1/2"G CONICAL CONNECTIONS X F1/2"G. MINIMALIST WALL SUPPORT IN CHROME ABS . COMPLETE PACKAGE OF GASKETS AND WALL FIXINGS. TYPE GOMAN CODE D0151/99

SPECIFICATIONS

SINGLE LEVER BASIN MIXER IN CHROMED BRASS WITH LONG LEVER. COMPLETE WITH 1"1/4 POP-UP WASTE. CARTRIDGE WITH CERAMIC DISKS. WATER INLET CONNECTIONS WITH 3/8" G FEMALE STAINLESS STEEL HOSES. FIXING MATERIAL AND GASKET INCLUDED. DIMENSIONS MM 55 (L) X 210 (P) X 203 (H). REDUCED FLOW RATE TO 1,33 L/MIN. TYPE GOMAN CODE D0K14R/99
