Wash basin accessories

SPECIFICATIONS

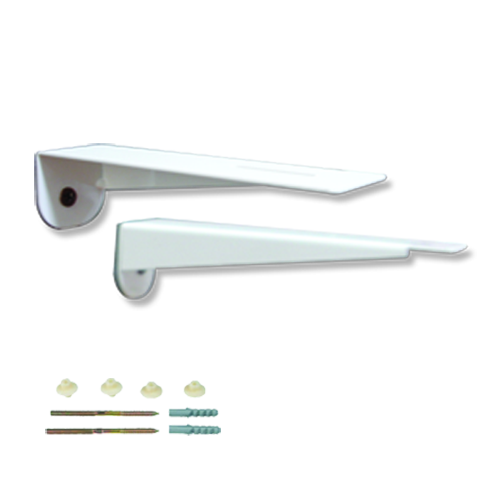

PAIR OF BRACKETS FIXED AND SCREW ANCHOR FOR DISABLED BASIN SERIES OPEN CODE D0280 / 01. WALL MOUNT, FULL OF MARTELLETTI SEALS AND INSTALLATION OF THE BASIN. MADE OF GALVANIZED STEEL AND PAINTED OF COLOR WHITE RAL 9016. OVERALL DIMENSIONS: MM 50 (L) X 200 (P) X 50 (H), HOLE Ø MM 10. TYPE: GOMAN ARTICLE D0136 / 01

SPECIFICATIONS

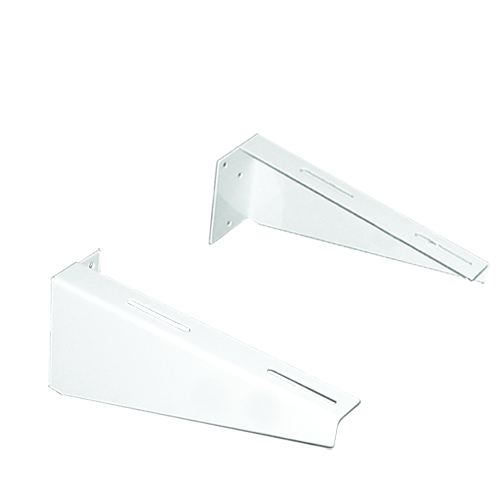

COUPLE OF FIXED SHELVES FOR DISABLED BASIN SERIES OPEN CODE D0280 / 01 E SERIES FORMAT CODE D0230 / 01. WALL MOUNT, FULL OF BOLTS AND PLUGS, MARTELLETTI SEALS AND INSTALLATION OF THE BASIN. MADE OF GALVANIZED STEEL AND PAINTED OF COLOR WHITE RAL 9016. OVERALL DIMENSIONS: MM 50 (L) X 355 (P) X 145 (H), 2 HOLES TO Ø MM 8 (DISTANCE BETWEEN THE HOLES MM 101). TYPE: GOMAN ARTICLE D0131 / 01

SPECIFICATIONS

MECHANISM TO WALL RECLINABILE MANUALLY IDEAL FOR DISABLED BASIN CERAMIC. MADE IN GALVANIZED PAINTED IN WHITE COLOR. THE BASIN WILL 'SET THE MECHANISM THROUGH APPROPRIATE AND YOU WILL MARTELLETTI' adjust the tilt SUPPLIED WITH THE KNOB. DIMENSIONS 580X390X160 MM. TYPE: GOMAN ARTICLE D0134 / 01.

SPECIFICATIONS

SHELF WITH WALL MOUNTING FOR DISABLED BASIN OPEN CODE D0280 / 01, RECLINABILE WITH GAS PISTON TIRES CONTROLLED BY CENTRAL BAR. MARTELLETTI OF COMPLETE INSTALLATION OF SINK, MADE OF GALVANIZED AND PAINTED WHITE COLOR. ANGLE OF 10 ° MAX. DIMENSIONS: 650 X 390 X 153 MM. TYPE: GOMAN ARTICLE D0133OP / 01

SPECIFICATIONS

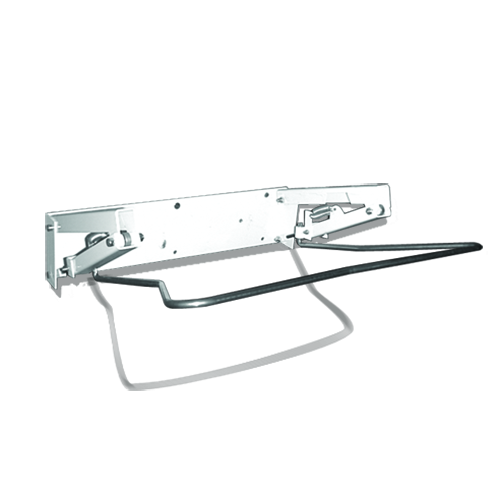

WALL MOUNTING SHELF FOR DISABLED WASHBASIN FORMAT (CODE D0230B/01), RECLINABLE WITH PNEUMATIC GAS PISTONS, CONTROLLED BY THE CENTRAL BAR. COMPLETE WITH HAMMER-HEADS BOLTS FOR THE INSTALLATION OF THE WASHBASIN, MADE OF GALVANIZED STEEL AND PAINTED IN WHITE COLOR. MAXIMUM INCLINATION OF 10 °. DIMENSIONS: 600 X 650 X 150 MM. TYPE GOMAN CODE D0133/01

SPECIFICATIONS

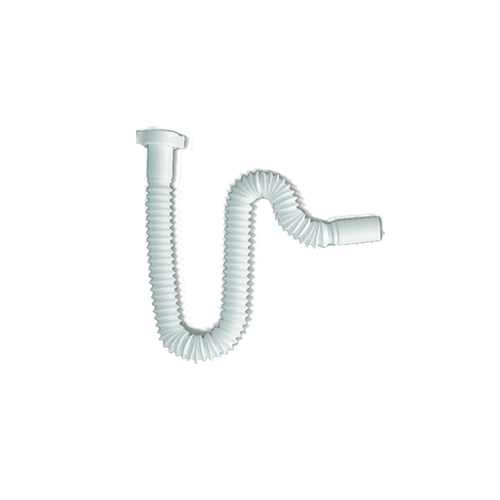

HOSE WITH ROSE, RESISTANT TO -10 ° C TO + 90 ° C, THREADED 1 "1 / 4F, SMOOTH OUT SLEEVE Ø32, MAXIMUM LENGTH 80 CM. SINKS FOR RECLINING, WITHOUT WASTE WITH BOAT EXHAUST PLASTIC MM. Ø32X200 MATERIAL: POLYPROPILENE. WHITE. TYPE: GOMAN ARTICLE D0132 / 01

SPECIFICATIONS

SELF-CLEANING TRAP 1 "1/4 POLYPROPYLENE WHITE WITH FLEXIBLE ARM STRETCH AND SINKS FOR RECLINING, WITHOUT WASTE, WASTE BOAT WITH PLASTIC Ø40 X 200 MM., TYPE: GOMAN ARTICLE D0137 / 01.

SPECIFICATIONS

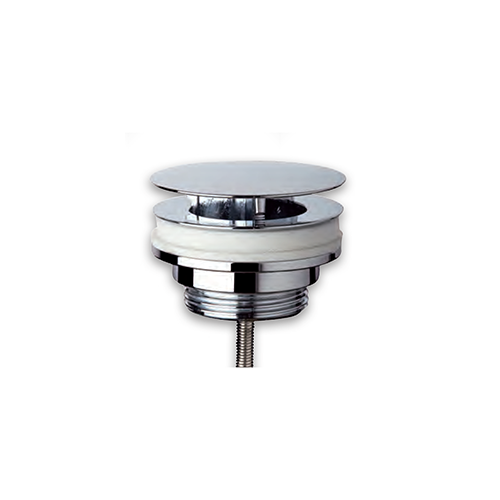

WASTE IN BRASS CONNECTION WITH A FREE DISCHARGE DISCHARGE TO 1 "1/4. PLUG WASTE Ø 72MM. TYPE: GOMAN ARTICLE D0381 / 99

SPECIFICATIONS

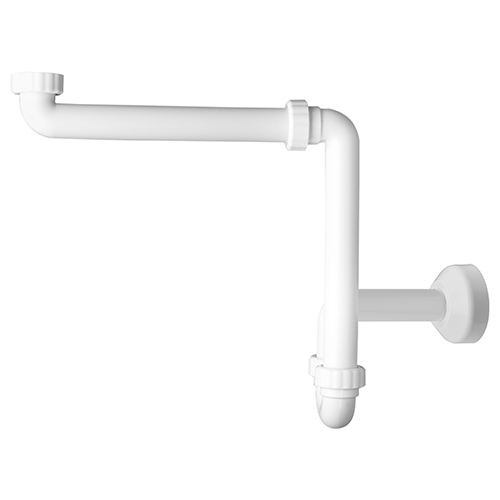

TRAP SPACE IN WHITE PPL, WITHOUT WASTE. SIZE 1 "1 / 4-1" 1/2 - Ø40 MM.- TYPE: GOMAN ARTICLE D0130 / 01

SPECIFICATIONS

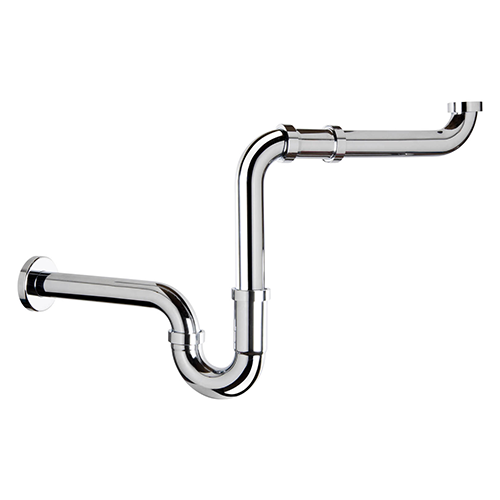

TRAP SPACE IN PPL CHROME, WITHOUT WASTE. SIZE 1 "1 / 4-1" 1/2 - Ø40 MM.- TYPE: GOMAN ARTICLE D0130C / 99

SPECIFICATIONS

SPACE-SAVING SIPHON FOR EXPOSED WASHBASINS IN CHROMED BRASS, MINIMAL DESIGN AND ACCURATE FINISHES, COMPLETE WITH 1”1/4 FREE DRAIN, WITHOUT OVERFLOW, SUITABLE FOR SOLID SURFACE WASHBASINS. SIPHON COMPLIANT WITH UNI EN 274. INLET 285 X 165 X 1”1/4 - OUTLET L. 100 X Ø32. ROSETTE Ø70 IN CHROMED BRASS. INSPECTABLE FOR CLEANING FOR PERIODIC CLEANING. ASSEMBLY INSTRUCTIONS INCLUDED. WATER CLOSURE 55MM. WATER FLOW (43 L/MIN.). DRAIN MEASURES Ø63MM 1”1/4 G. PLUG Ø65 MM. GOMAN TYPE CODE D0376/99

SPECIFICATIONS

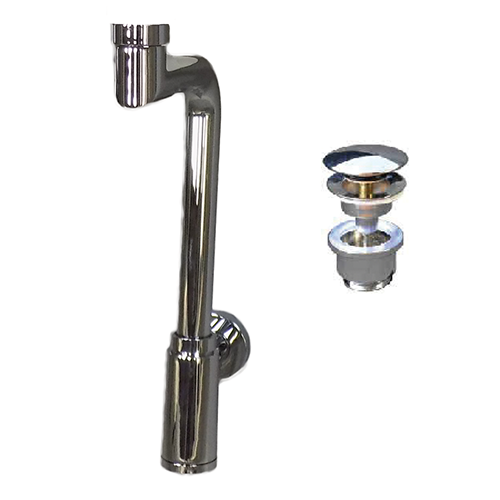

SPACE-SAVING TRAP FOR SINKS VISIBLE IN BRASS, MINIMAL DESIGN AND FINISHES ACCURATE, COMPLETE WASTE CLIK-CLAK 1 "1/4, WITH FULL TOO, SUITABLE FOR BOWLS CERAMIC. TRAP IN COMPLIANCE WITH UNI EN 274. ENTRY 285 X 165 X 1 "1/4. OUTPUT L. 100 X Ø32. TYPE GOMAN D0377 / 99
